Specs:
- Hot-swap version: KBD75 hot swap PCB, Per-key RGB on top (without RGB underglow) DP4025

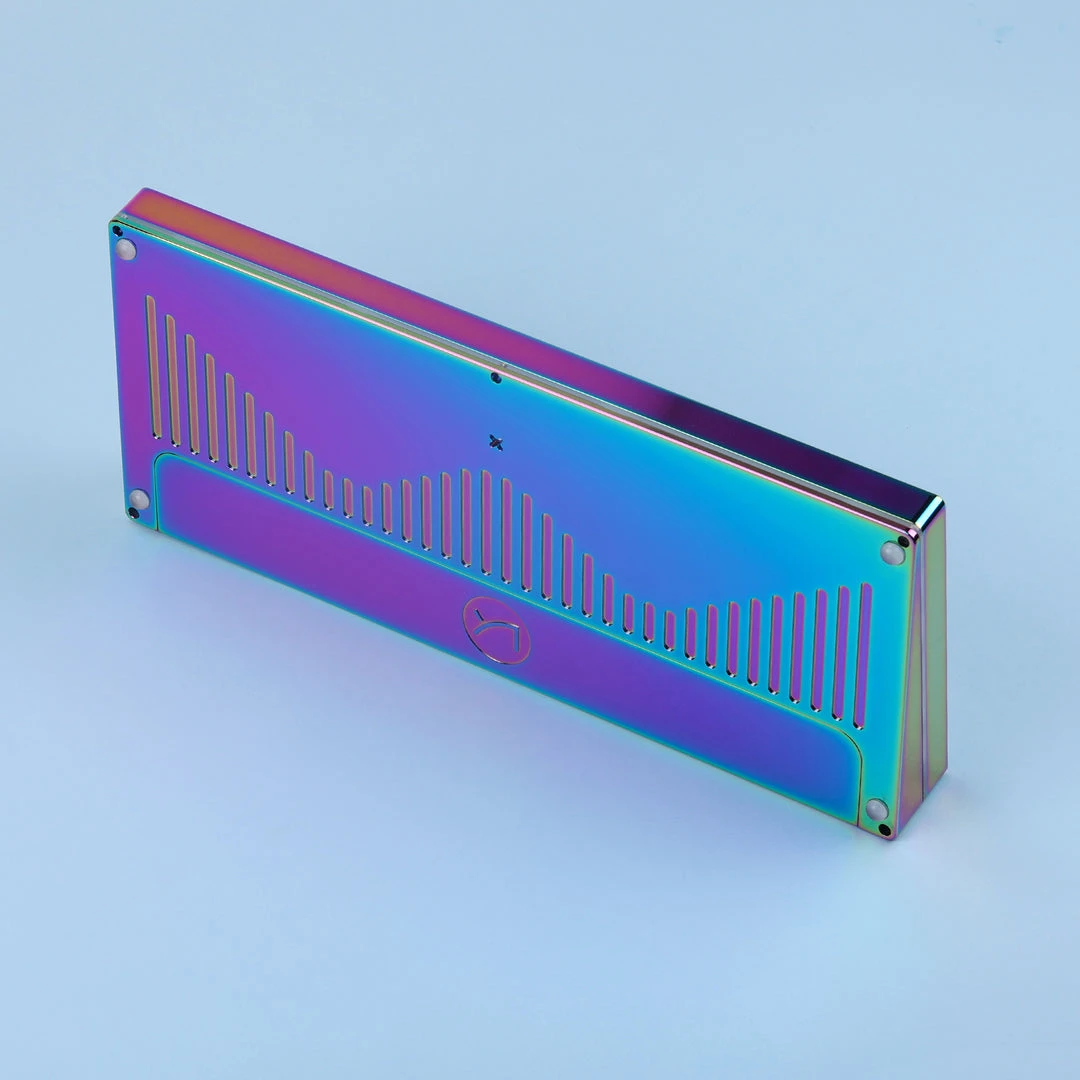

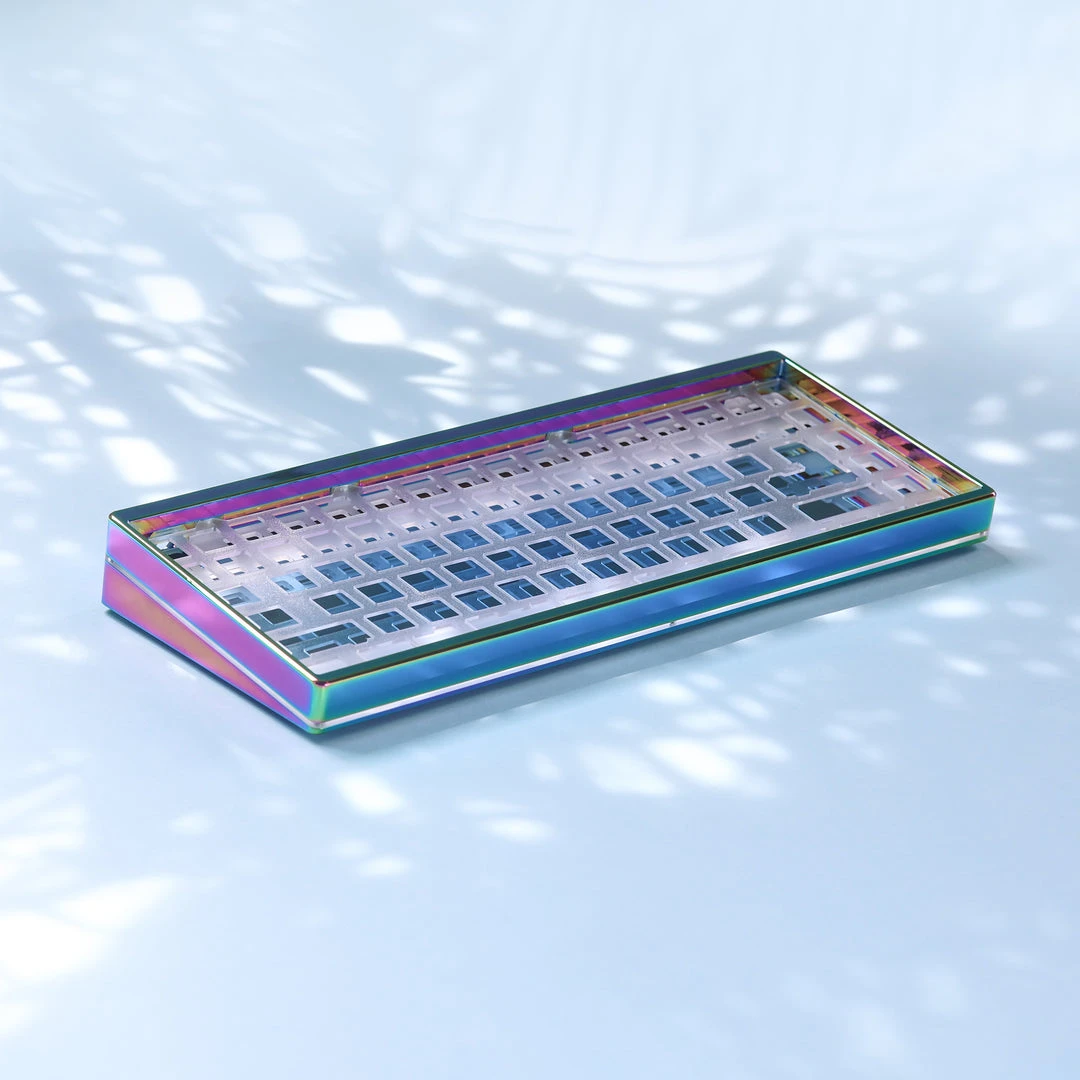

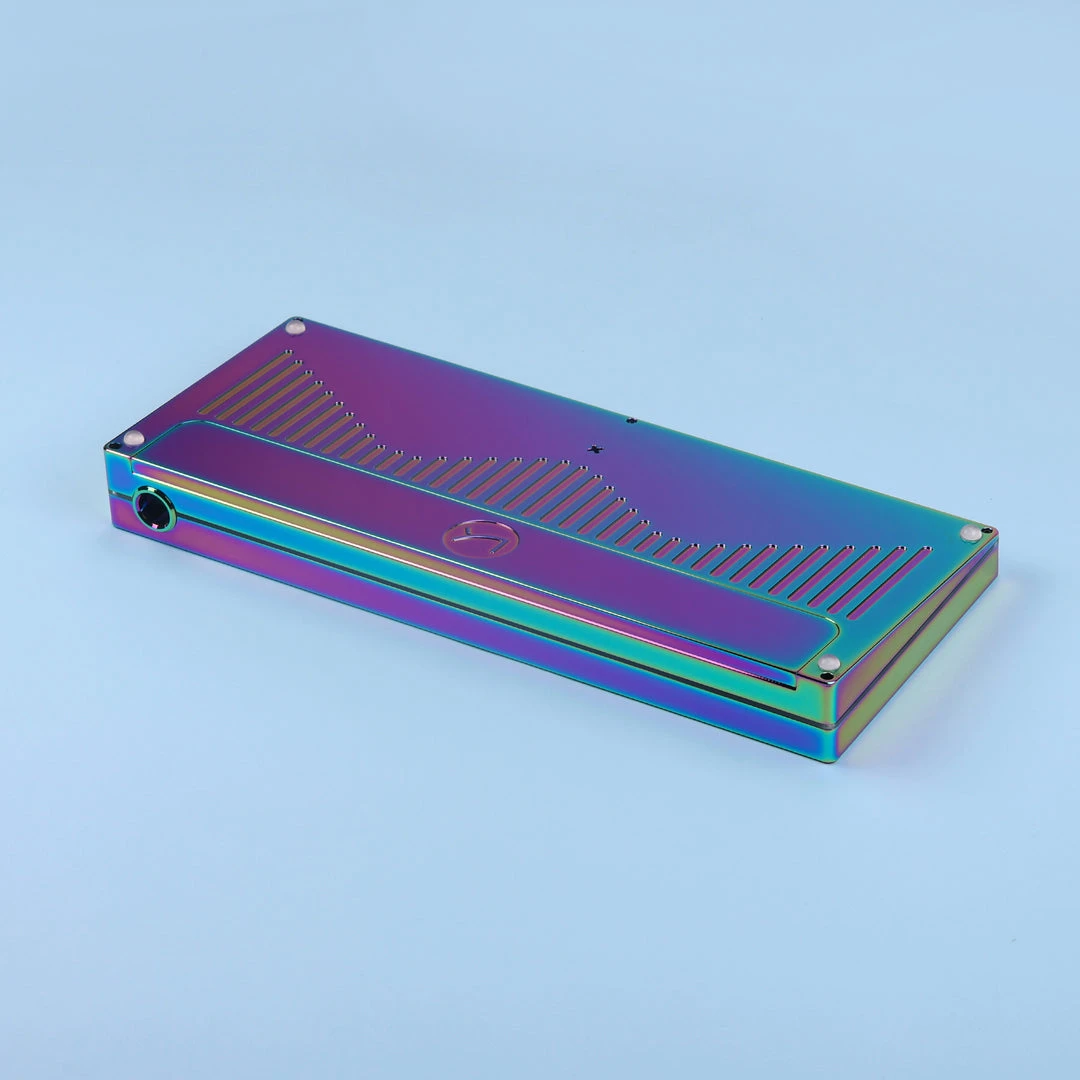

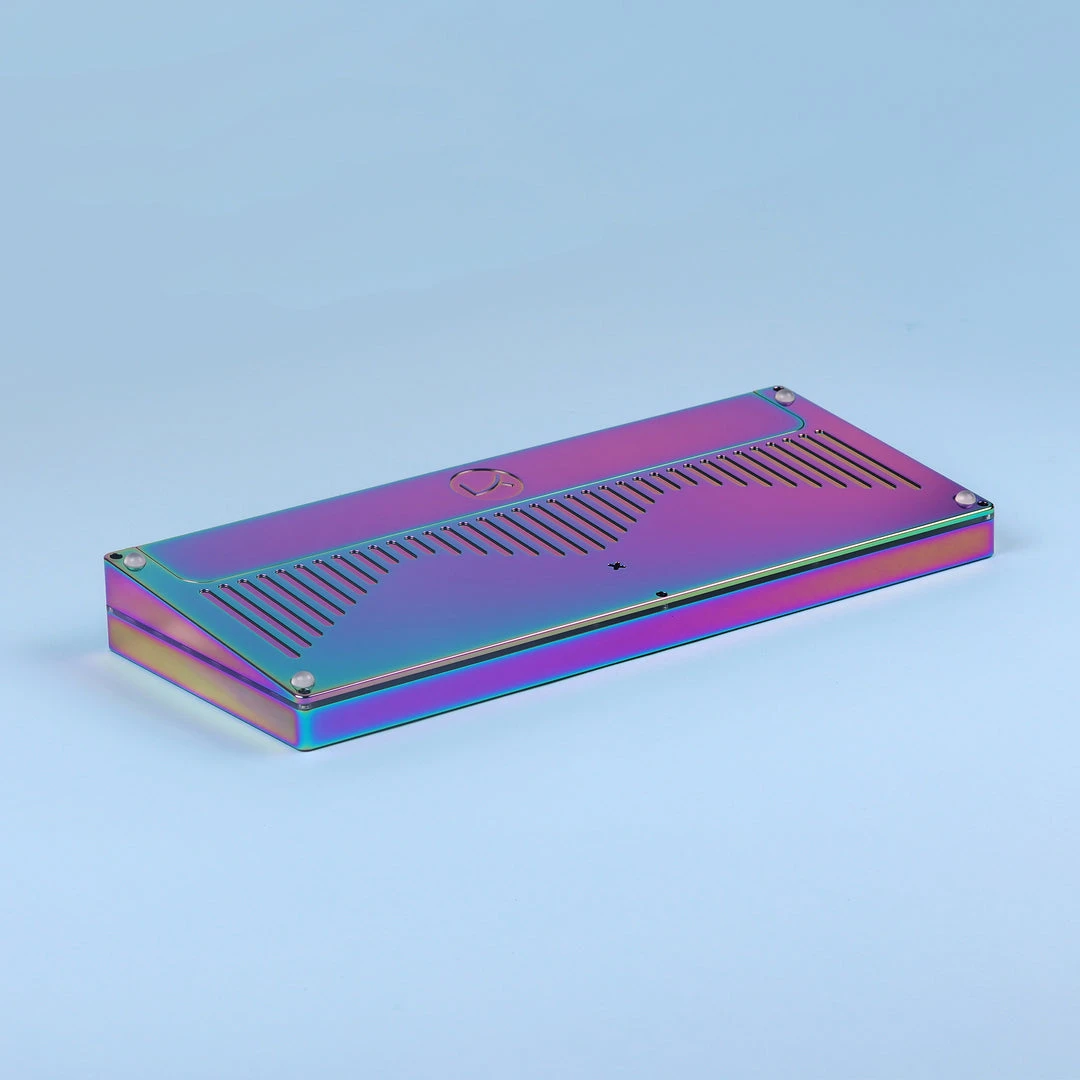

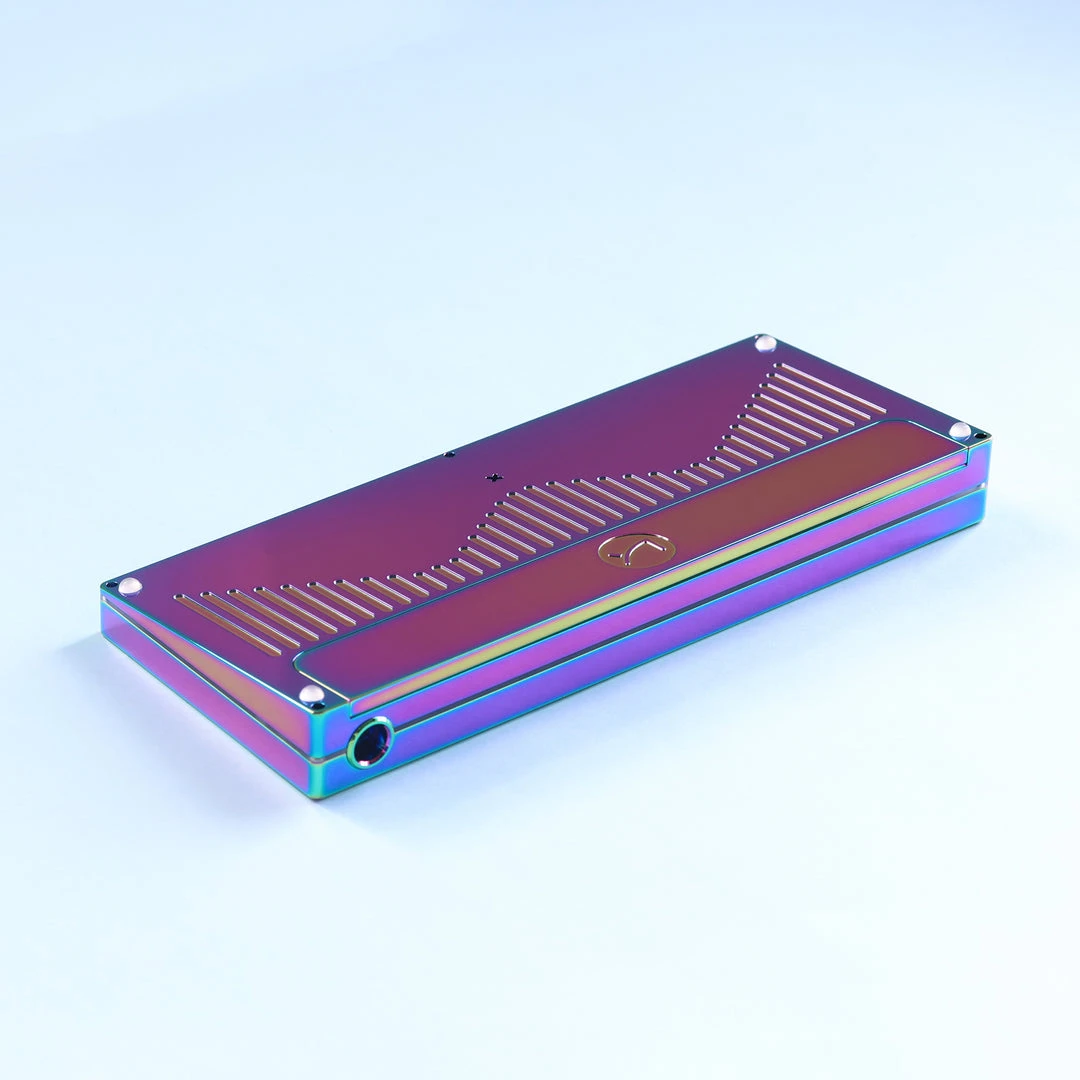

- Case: Top-mount, PVD laser aluminum material 75% layout, Acrylic mid-layer
- Typing angle: 7ยฐ
- Interface: Type-C
- Plate: Polycarbonate Plate
- Stabs: Cherry screw-in stabs 60set x1
- Foams: PCB foam and Case foam will absorb the noise generated by typing
- Weight bar: Aluminum material default (KBD75 V2 Brass weight bar doesn’t fit KBD75 V3.1 Case)
Include
- PCB x1
- Case x1
- Plate x1
- PCB foam x1
- Case foam x1
- Stabs 60 set x1
- USB-A to USB-C cable x1
- Screws and rubber feet
Optional Accessories
- Keycaps collection:ย Click
- Carrying case: Click
- KBDfans handmade custom mechanical keyboard Type-C Cable: Link
VIA Support
- Flash Manual: Click
- Firmware link: kbdfans_kbd75rgb_via.binย ย kbd75rgb.json
